DRILLING & TAPPING MACHINE Model: Z5040

DRILLING & TAPPING MACHINE

Model: Z5040

Operation Manual

Please read this manual carefully before you using this machine

Max. Drilling Capacity 40mm

Max. Tapping Capacity M27

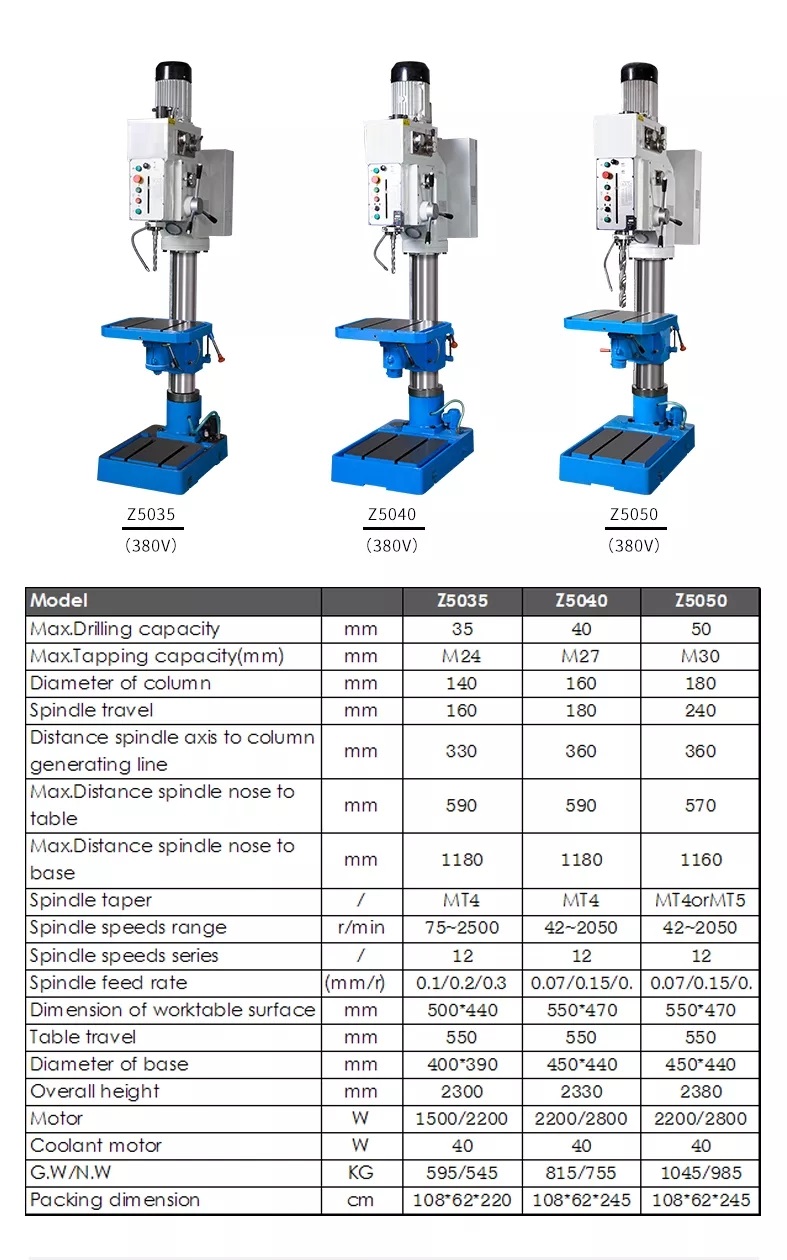

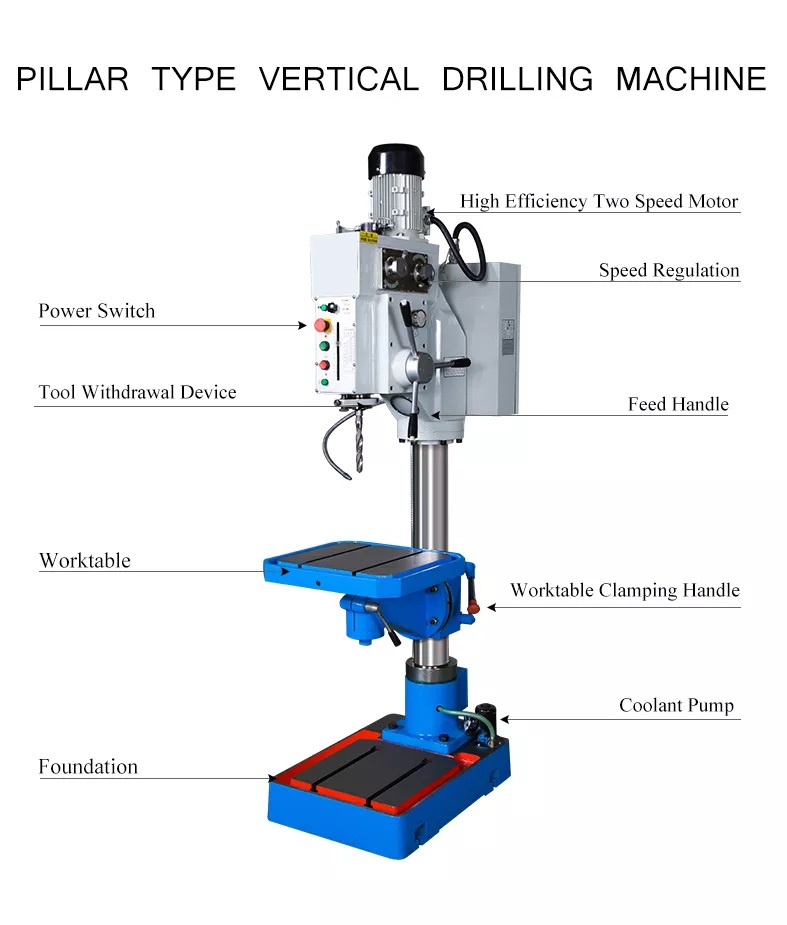

Main technology specification

No. Name Parameter Unit

1 Max. Drilling Capacity 40 mm

2 Distance spindle to column surface 360 mm

3 Max. Distance spindle nose to worktable 595 mm

4 Max. Distance spindle nose to base 1180 mm

5 Spindle travel 180 mm

6 Table & support travel 560 mm

7 Table rotary angle ±45 (°)

8 Spindle taper 4 MT

9 Spindle speed series 12

10 Spindle speeds

42、62、85、125、170、250、

340、510、690、1035、1365、2050 r/min

11 Spindle feeding No. 4 grade

12 Spindle feed 0.07、0.15、0.26、0.40 mm/r

13 Column diameter φ160 mm

14 Table area（L×W） 410×380 mm

15 Base area（L×W） 450×440 mm

16 T-slot of Table and Base 2－14，2－18 mm

17

Main Motor

YD112M—6/4

Power 2.2/2.8 kW

Volts 380 V

R.p.m 960/1440 r/min

18

Pump

DB-12A

Power 40 W

Volts 380 V

Flux 12 L/min

19 Electromagnetism clutch

DLYO—16S

Power 24 W

Volts 24 V

20 Overall size（L×W×H） 1010×580×2330 mm

21 N.W/G.W 680/750 kg
