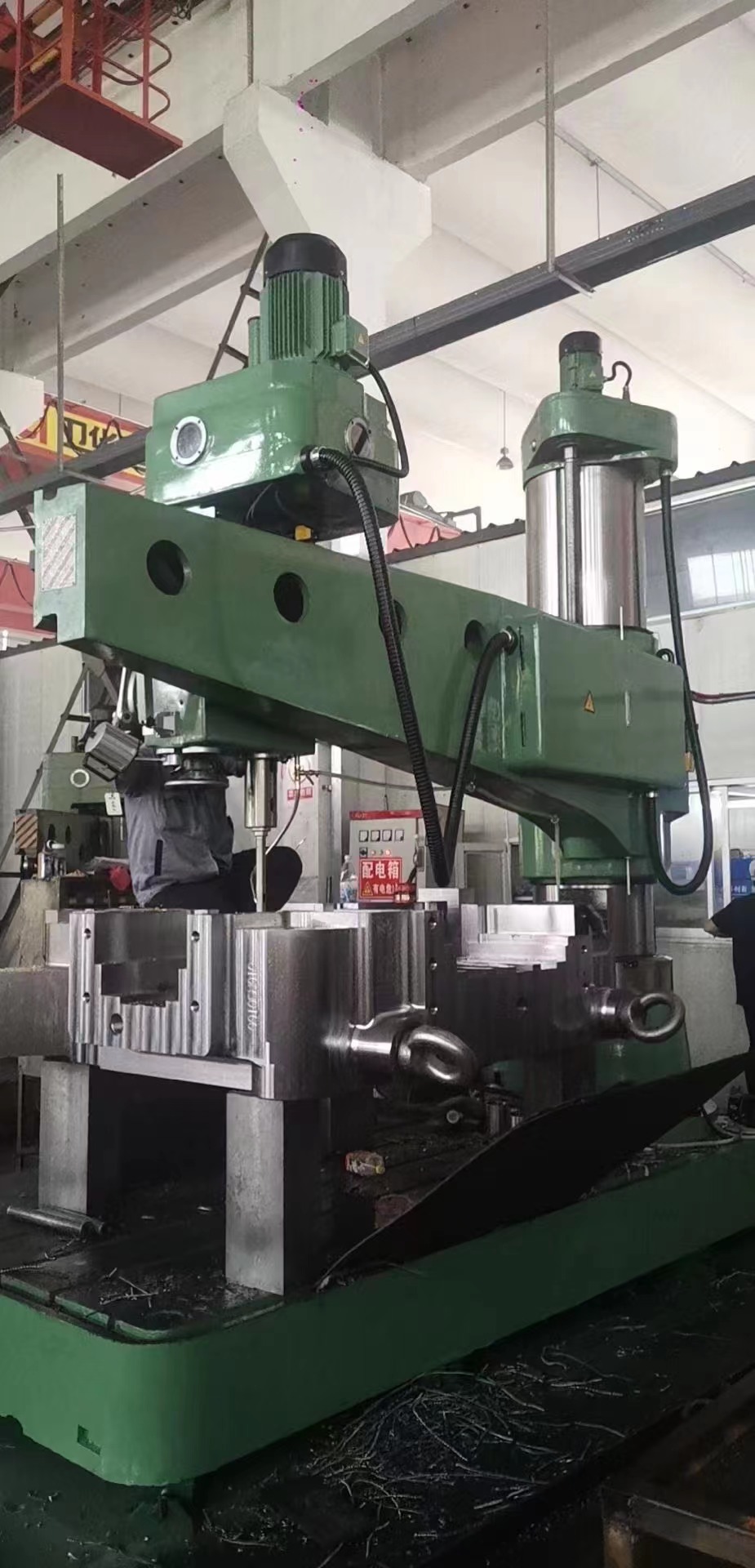

RADIAL DRILLING MACHINE

Z3050×20/1

INSTRUCTION MANUAL

Max. Drilling Diameter         50  mm

Arm Length             2000  mm

Serial Number

Main specification and dimension of all parts

2.1  Main Specification:

Max.drilling Capacity…………………………………….50mm

Distance from spindle bore to column surface ..…350～2000mm

Max. travel of spindle head along radial arm…….……1750mm

Distance from spindle bore to base..…………...…320-1220mm

Spindle travel……………………………………………435mm

Spindle taper……………………………………………….MT5

Numbers of spindle speed…………………….……….…….16

Range of spindle speed………………….……….25-2000r/mm

Numbers of spindle feed：…………………….……………16

Range of spindle feed：………………………..0.04～3.2 mm/r

Radial arm elevating speed…..……….………...……1.2 m/min

Radial arm rotation angle…………….…………………… 360°

Max torque on spindle：……………………………400 N·m

Max feed load force………………………………….…16000 N

Main motor power……..………………………….……....4 KW

Radial arm elevating motor power……………..….……1.1 KW

Clamping motor power……………………………….…0.75 KW

Coolant pump motor power……………….………..…0.120KW

Net weight……………………………….…………….3600 KG
